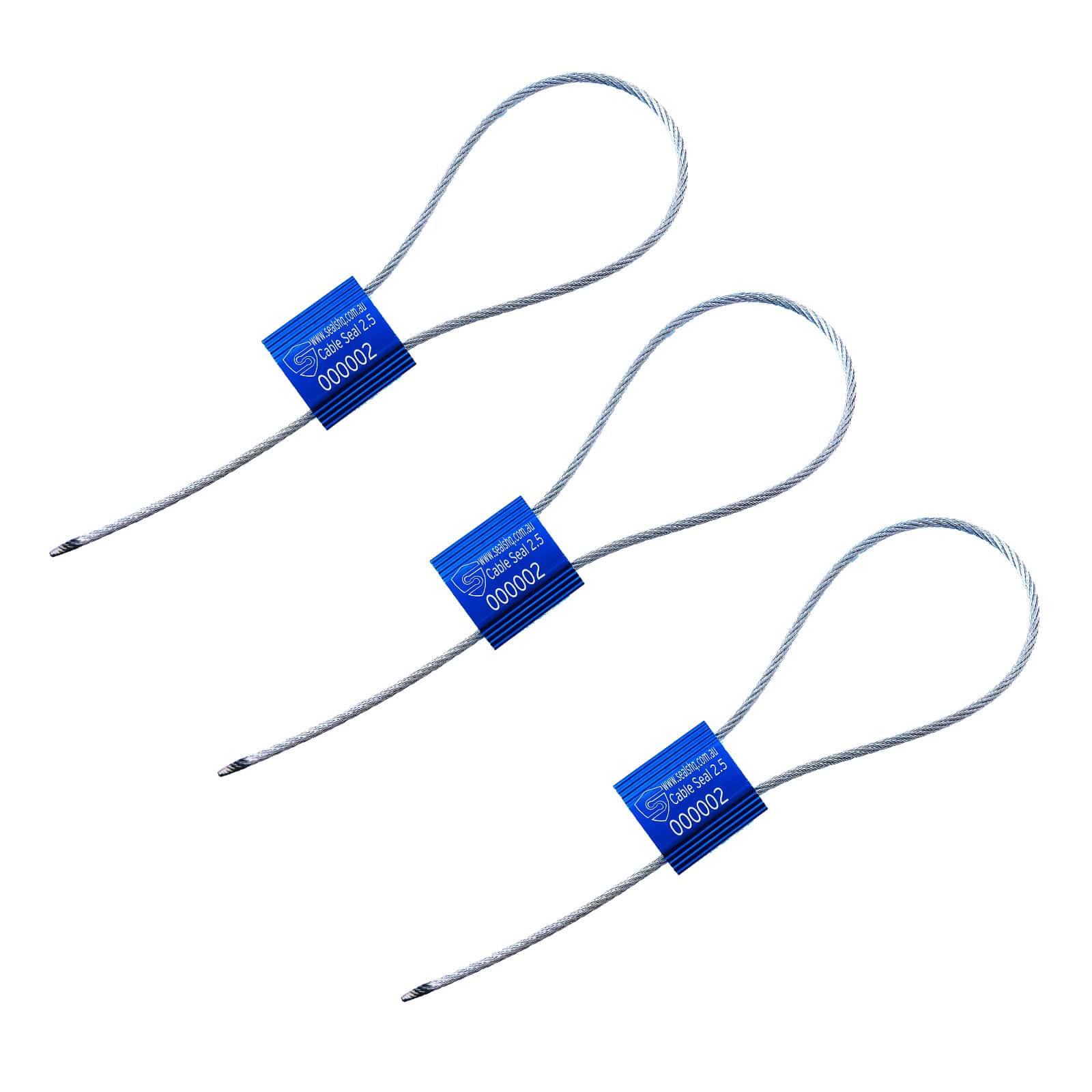

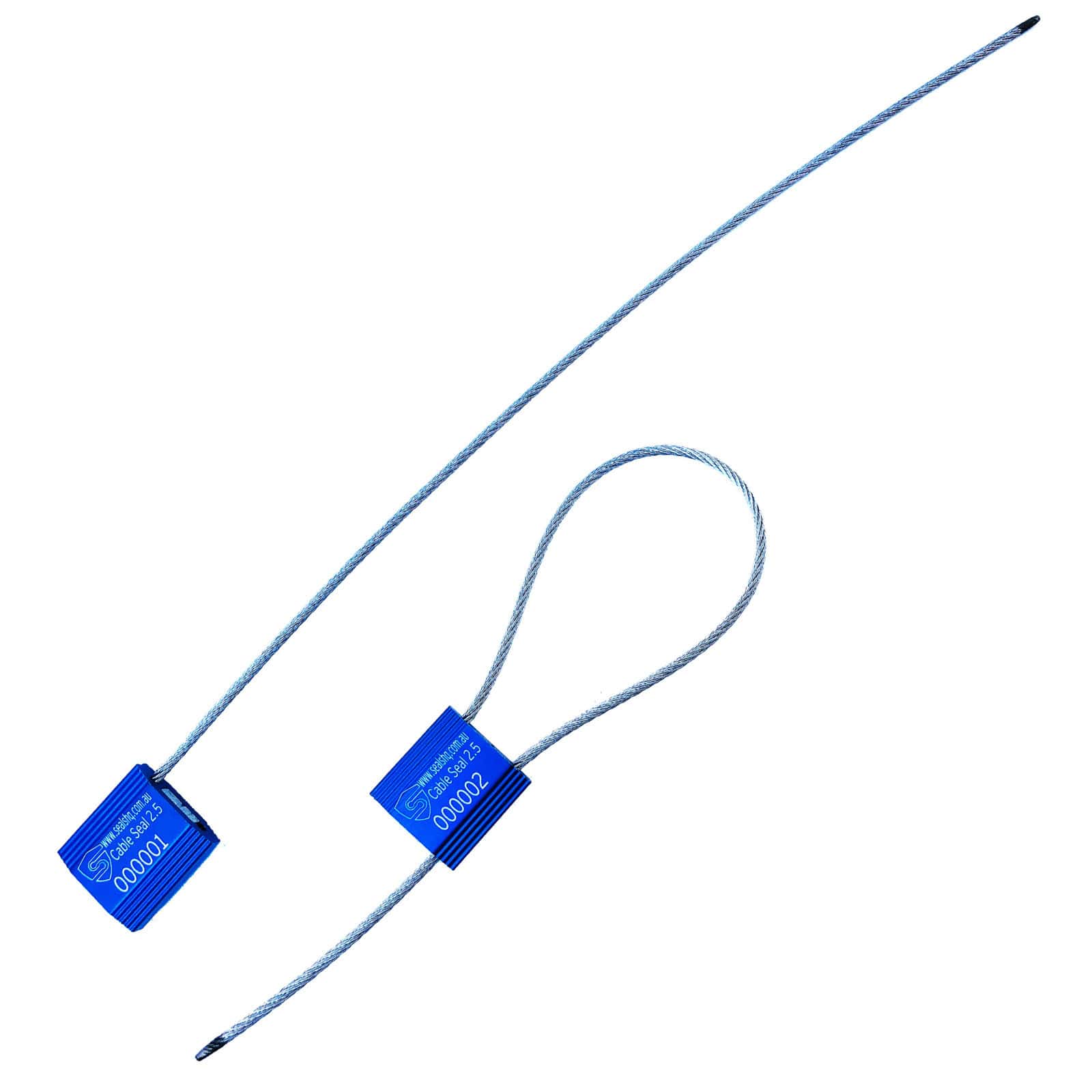

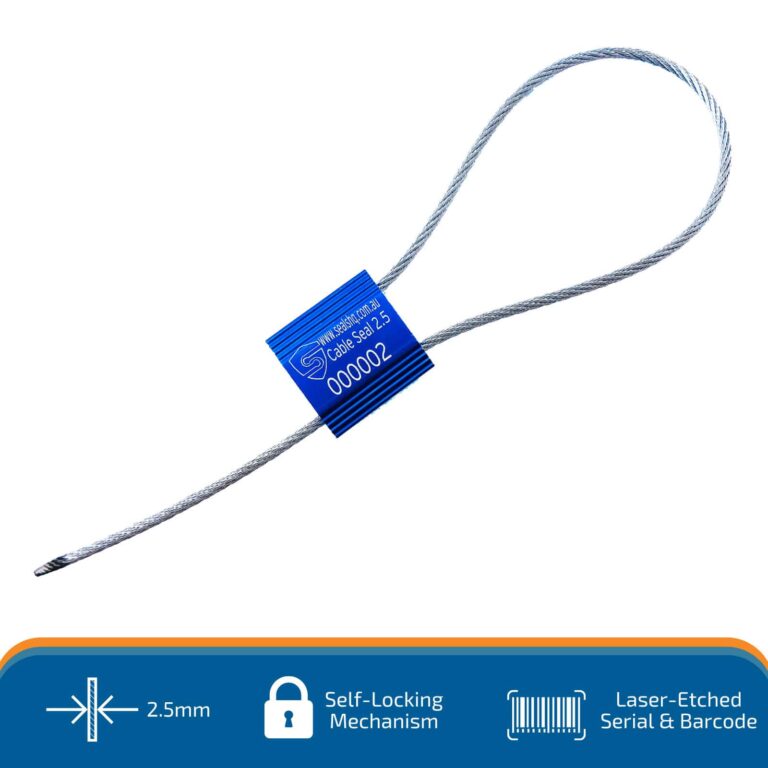

Cable Wire Seal 2.5mm with 30cm wire
Strong and durable premium aluminium bodied cable seal with 2.5mm non-preformed, 30cm length wire designed to provide maximum security.
Features:
- Customisable wire lengths to suit a wide range of applications
- Non-preformed galvanised cable unravels when cut to prevent resealing
- Aluminium body enhances durability in adverse conditions
- Self-locking mechanism ensures secure locking without need for tools
- Anodized aluminium body allows greater customisation options while providing
high visibility and easy readability - Laser etched markings with unique Serial Number and Barcode
- Sold in cartons of 500 pieces
Contact us to customise your seal with logos, text, and serial numbers.
Description
Description
Cable Wire Seal 2.5
Cable Wire Seals provide flexibility in terms of wire length to suit most applications, and the cable wire is flexible to bend or twist in tight applications. Cable Wire Seals also provide medium barrier resistance and is effective to prevent intrusion.

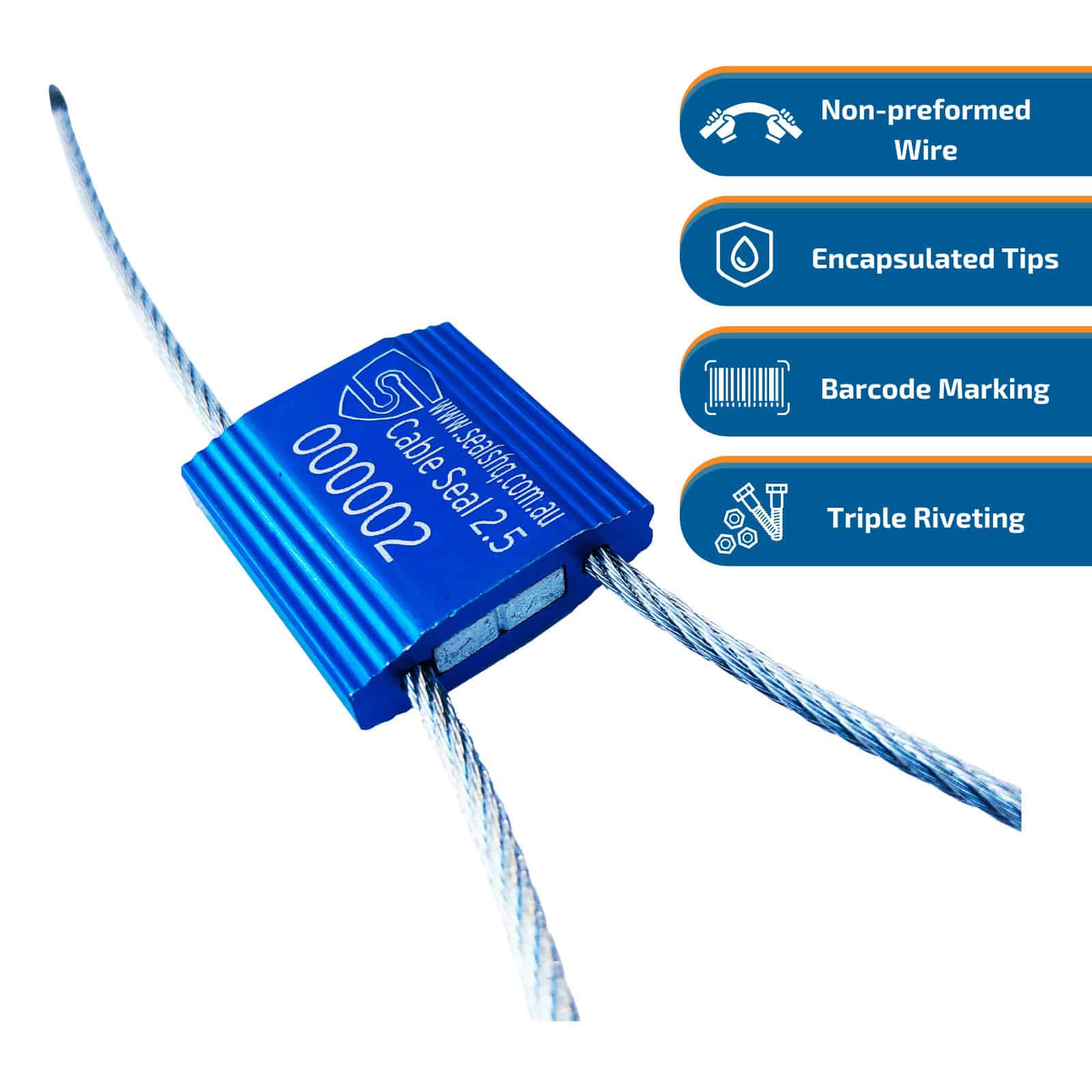

Our Cable Wire Seals consist of a metal body with a high tension non-preformed wire. The tension in the cable ensures that the cable frays when cut, preventing the Cable Wire Seal from being reused. The locking mechanism consists of spring-loaded ball bearings which grips firmly onto the cable when engaged.
All our Cable Wire Seals feature:
- Non-Preformed Wire – High tension non-preformed aircraft grade wire frays when cut (so can not be reused).
- Metal Body – Metal body provides durability in rough operational conditions.
- Unique Number – Unique sequential serial number for record and audit purposes.
- Wire Length – Customisable wire length and diameter to suit any application.
- Secure Locking – Spring loaded ball bearing locking mechanism that securely grips the wire when applied.
- Self-Locking – Self-locking mechanism does not require any additional tools to apply the seal.
- Removal using Cable Cutters only.
Technical Specifications
- Body: Aluminium
- Wire: Galvanised Wire
- Locking: Zinc Cast Locking
- Tensile Strength: 480kgs

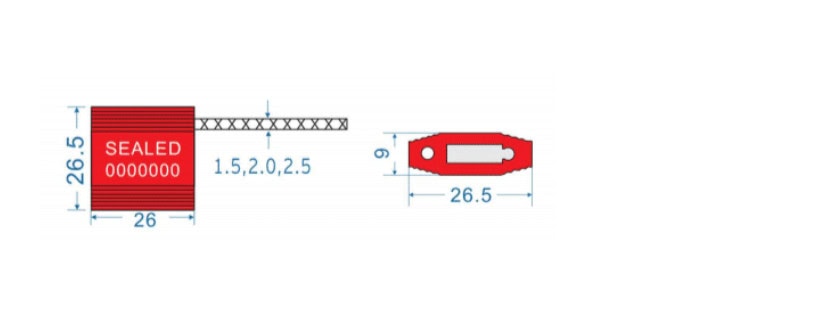

- Body Dimensions: 26.5mm x 26mm x 2.5mm
- Wire Dimensions: 1mm x 7mm x 7mm
- Total Length/Locking Length: Customisable Wire Length
Industries
- Banking
- Transportation
- Cash In Transit
- Government
- Retail
- Pharmaceutical & Healthcare
- Food Services
- Manufacturing & Packaging
- Education
- Mining
Typical Applications
- Trailer Doors & Curtain Buckles
- Bulk Tankers and Trailers
- Tote Boxes
- Roll Cages
- Ballot Boxes
- Steel Drums
- Hatches
- Valves and Fittings
- Money Cages
- Plastic Boxes
Customisation Options
Customising the artwork printed on your bolts is not just a branding exercise. By having your own artwork, you are reducing the possibility of tampering or pilferage.
- Customer name and corporate logo
- Customised text and artwork
- Up to 8 digits sequential numbering
- 2D/QR technology barcode (not available on all colours)
Additional information
| Tensile Strength | 480kgs |
|---|---|
| Body | Aluminium |
| Wire | Galvanised Wire |
| Total Length/Locking Length | Customisable Wire Length |
| Locking | Zinc Cast Locking |
| Size |
What colour options are available for the 2.5mm Cable Wire Seal?
The 2.5mm Cable Wire Seal is available in black, red, blue, green, and yellow for visibility and operational categorisation.
What are common applications for the 2.5mm Cable Wire Seal?
The 2.5mm Cable Wire Seal is commonly used on trailer and container doors, valves, steel drums, ballot boxes, tote boxes, hatches, and money cages.
What makes the 2.5mm Cable Wire Seal ideal for high-security sealing?
The 2.5mm Cable Wire Seal features a thick 2.5mm non-preformed cable, a durable anodised aluminium body, and a 480kg tensile strength, making it a reliable option for securing high-value or sensitive cargo.
How is the 2.5mm Cable Wire Seal different from the 1.5mm version?
The 2.5mm Cable Wire Seal offers higher tensile strength (480kg vs. 280kg), making it suitable for heavy-duty applications such as trailer doors, steel drums, and storage units.
Can the wire length on the 2.5mm Cable Wire Seal be customised?
Yes. The 2.5mm Cable Wire Seal comes standard with a 30cm wire, but the length and thickness can be customised to suit different applications.
What is the advantage of non-preformed wire in the 2.5mm Cable Wire Seal?
The non-preformed galvanised wire on the 2.5mm Cable Wire Seal frays when cut, preventing resealing and giving clear evidence of tampering.
Do I need tools to apply the 2.5mm Cable Wire Seal?
No, the 2.5mm Cable Wire Seal is self-locking with a spring-loaded ball bearing system. Removal requires cable cutters.
How can the 2.5mm Cable Wire Seal be tracked for audits?
Each 2.5mm Cable Wire Seal is laser-marked with a unique serial number and optional barcode, supporting traceability and compliance.
Can the 2.5mm Cable Wire Seal be customised with branding?
Yes, the 2.5mm Cable Wire Seal can include custom logos, text, serial numbers (up to 8 digits), or QR/2D barcodes.
Is the 2.5mm Cable Wire Seal suitable for harsh conditions?
Yes, the anodised aluminium body of the 2.5mm Cable Wire Seal is corrosion-resistant and built to withstand tough environments such as mining and industrial transport.
