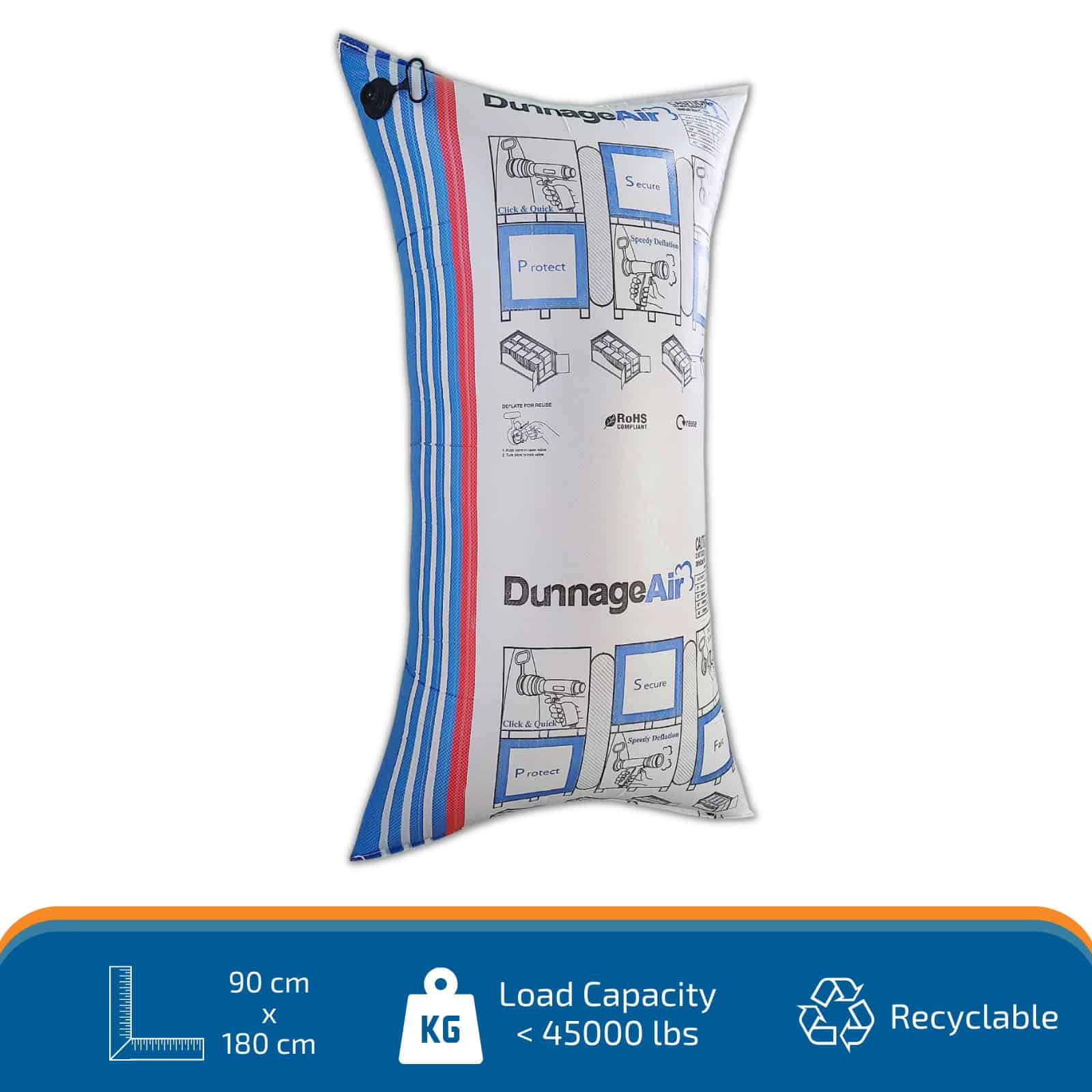

Dunnage Woven Bag 90cm x 180cm
Material
Outer layer – Polypropylene woven fabric with UV Protection
Inner layer – Co-extruded PE & Nylon with high puncture resistant
Valves – Fast fill valves are easy and quick to inflate and deflate. Valves have very good air impermeability.
Quality
For every batch of Dunnage Air Bags produced, one out of every ten bags are tested.
100% leakage tested
Load Capacity – Less than 45000 lbs
Working Pressure – 2.90 PSI / 0.207 Bar
Burst Pressure – 8.7 PSI / 0.6 Bar
Transportation Mode – Truck, Intermodal, Sea container

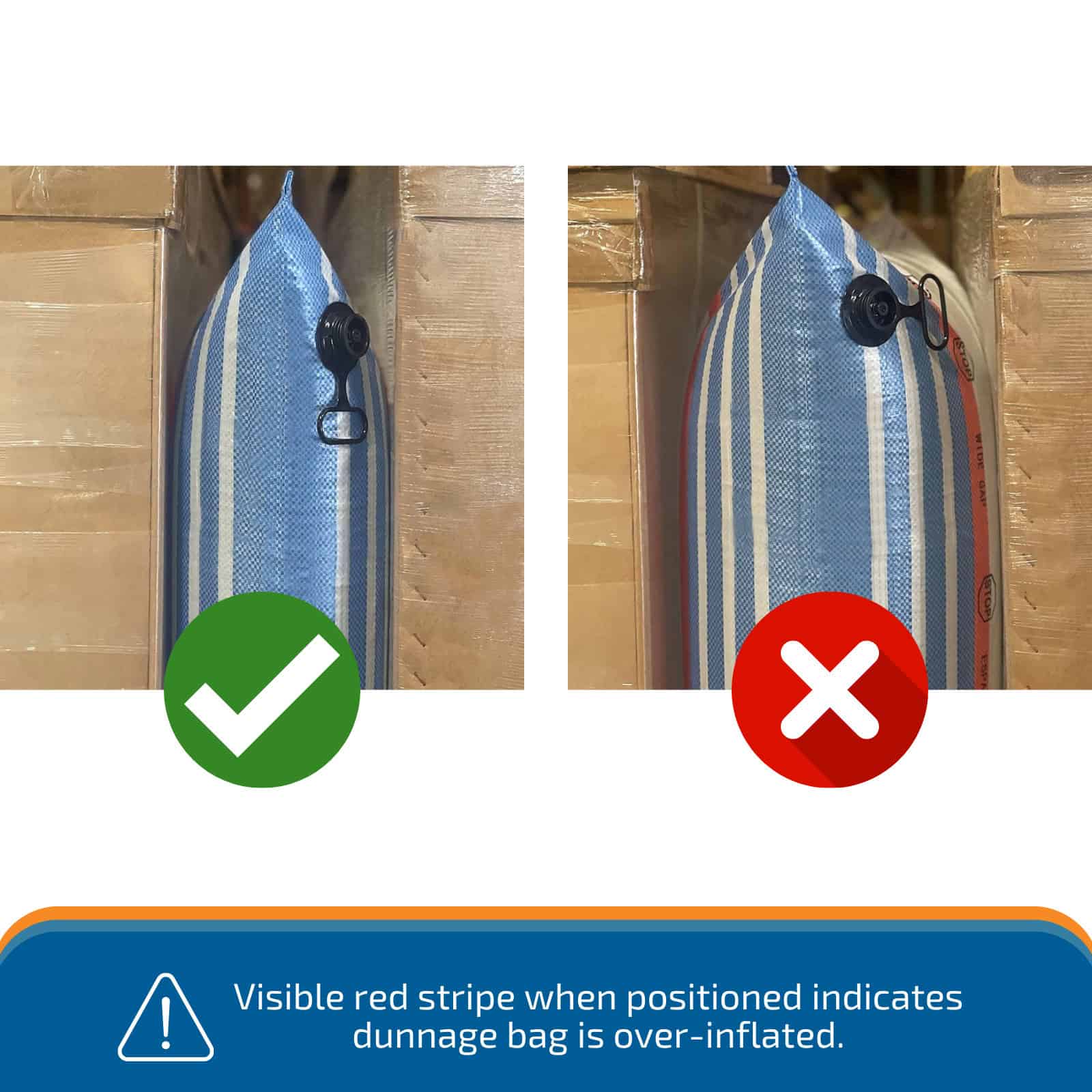

A visible red stripe when the dunnage bag has been positioned, indicates when a dunnage bag has been over-inflated.

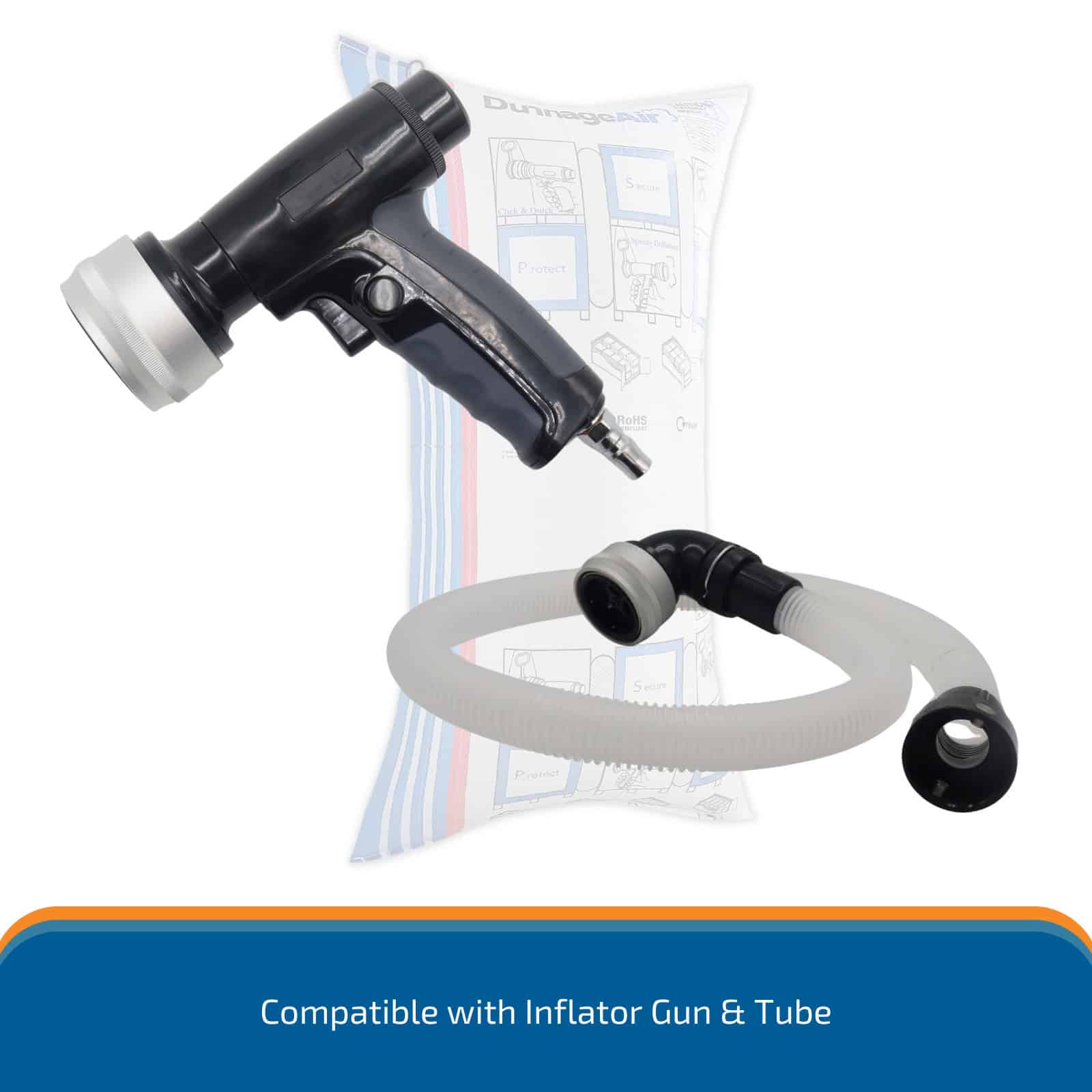

Dunnage bags can be inflated with our Dunnage Bag Inflator. Alternatively, an air compressor with an 8mm connection pipe can be used.
Description

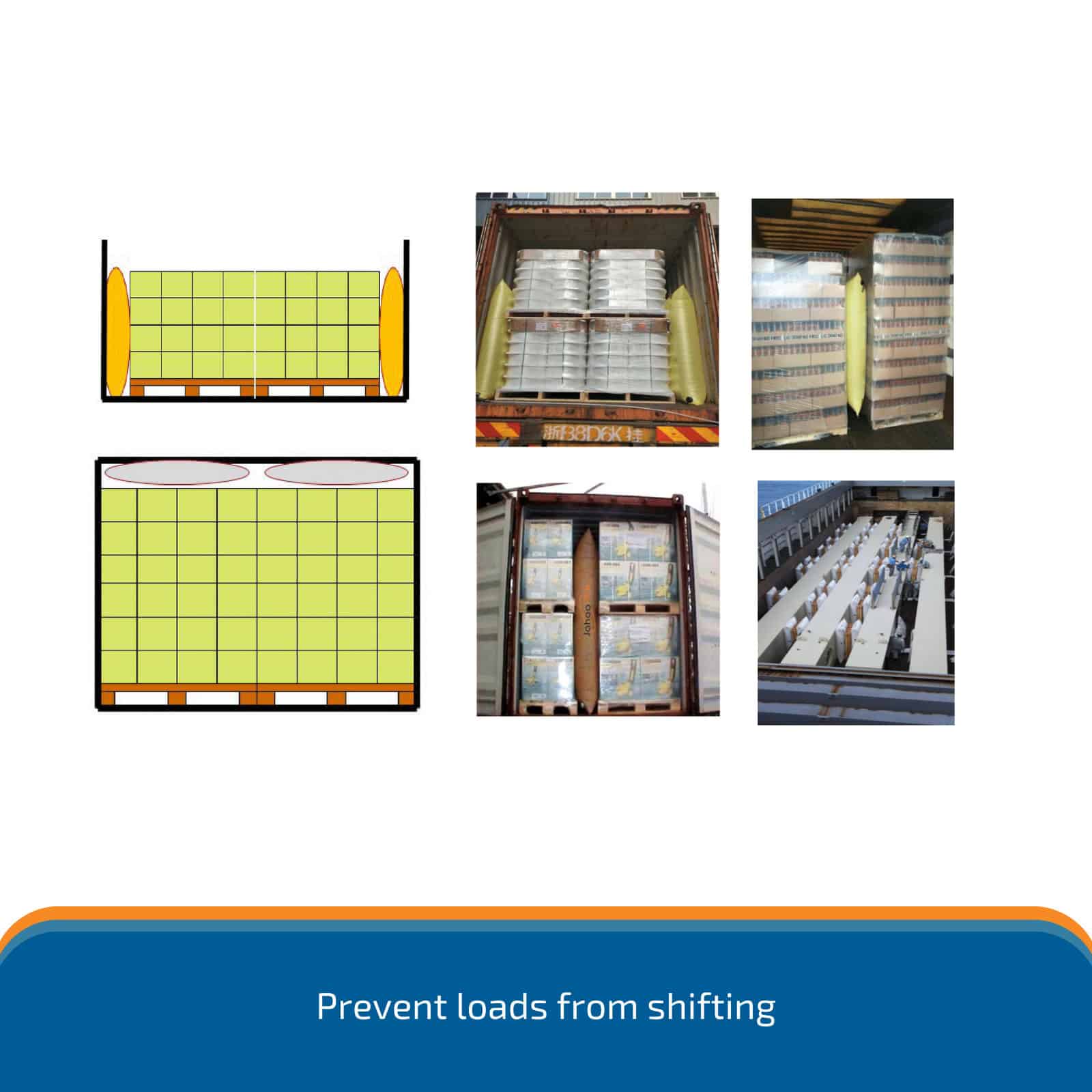

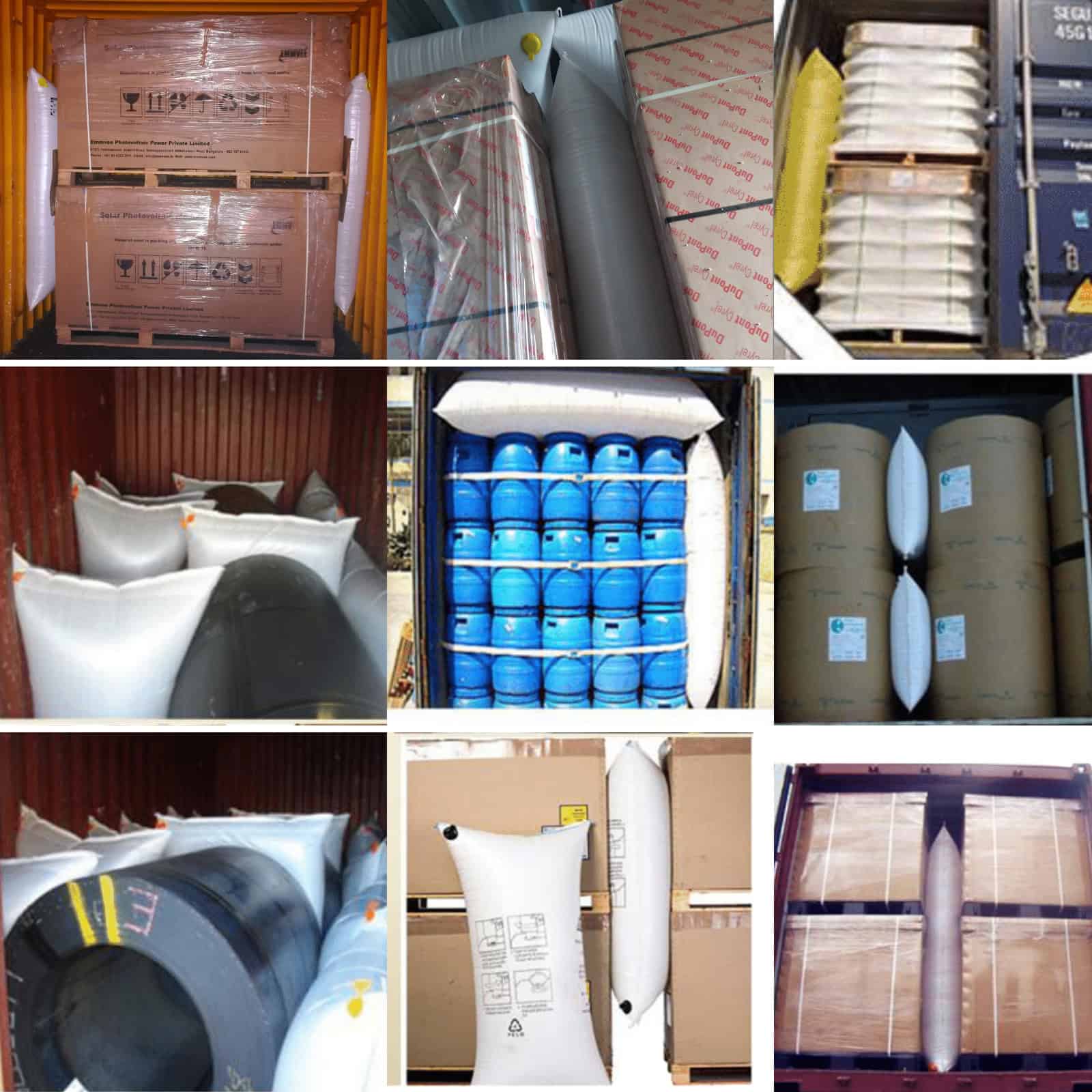

Dunnage Woven Bag 90cm x 180cm are used in trucks and containers, and manage the movement of cargo by bracing the loads, filling voids, protecting cargo from in-transit damage and absorbing vibrations. Bags can effectively prevent cargo shifting, slipping or dropping.
The cushioning protection result achieved by this air bag is superior to any other kind such as wood, paper mould or foam.
Benefits
- Easy to install
- Effectively fill cargo gaps
- Cargo damage is greatly reduced
- They improve load factor, reduce labour and transportation costs, increasing the company’s bottom line.
- Fast inflation process to save loading time.
- Light weight and flexible
- More bags per box. They remain flat before inflation, thus requiring minimal storage.
- Bags can be used vertically or horizontally
- If the red stripe is visible when the bag is inflated and positioned, the bag is over-inflated and will need to be adjusted for safe use.
And most importantly Dunnage Air Bags are
- Moisture resistant
- Recyclable
- Reusable
- Eco-friendly
Dunnage bags can be inflated with our Dunnage Bag Inflator. Alternatively, an air compressor with an 8mm connection pipe can be used.
For more information see our Dunnage Bag Brochure.
View our Instructional Videos
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 120 × 50 × 33 cm |
| Unit Dimensions | 90cm x 180cm |
| Load Capacity | Less than 45000 lbs |
| Inner Bag material | PA & PE film |
| Working Pressure | 2.9 PSI / 0.207 Bar |
| Burst Pressure | above 6.0 PSI for level one |
| Inflation Pressure | 2.0 – 3.5kg |
| AAR Level | Level 1 |
| Size |
What is the Dunnage Bag 90 × 180 cm used for?
The Dunnage Bag 90 × 180 cm is suitable for medium to large voids in shipping containers and trucks, offering reliable stability for bulkier loads.
How durable is the Dunnage Bag 90 × 180 cm?
The Dunnage Bag 90 × 180 cm features a woven polypropylene outer layer and high-quality valve system, ensuring strength and long-lasting performance.
Can I use the Dunnage Bag 90 × 180 cm more than once?
Yes. The Dunnage Bag 90 × 180 cm can be reused when properly deflated and stored, provided there is no visible damage.
