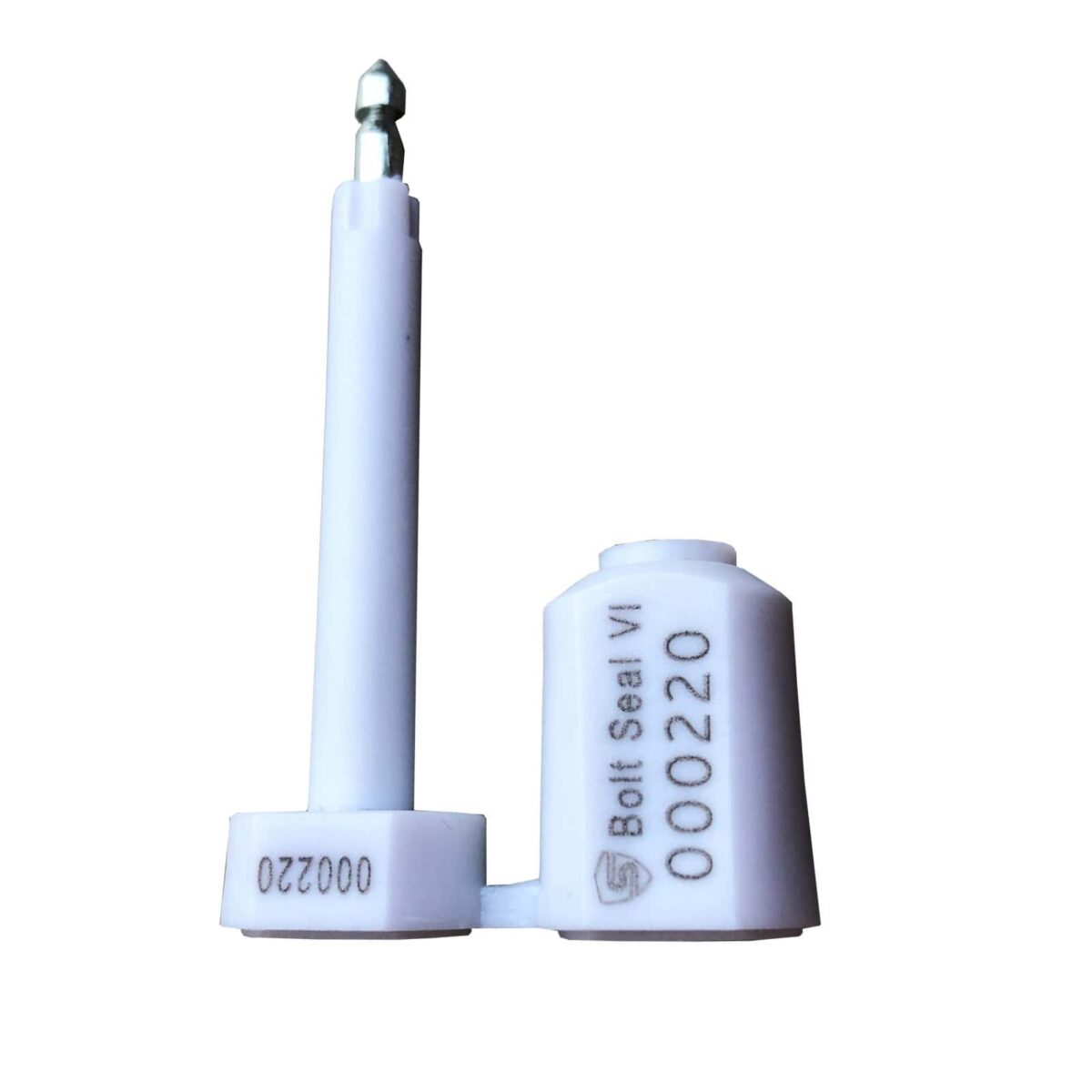

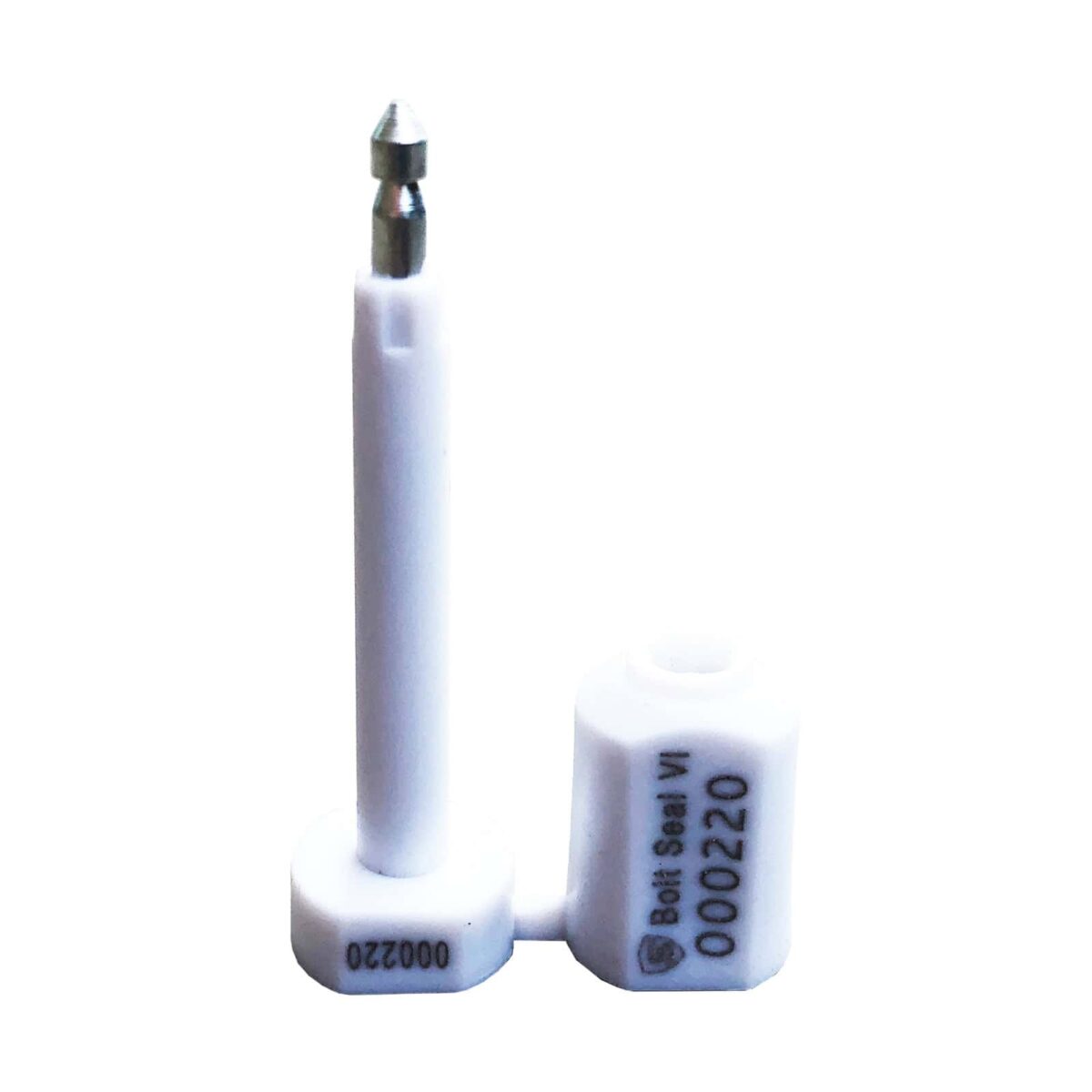

Mini Container Bolt Seal VI
An economical bolt seal with integrated anti-spin feature suitable for domestic transportation. Thin plastic-coated pin with low shear strength for easy removal.

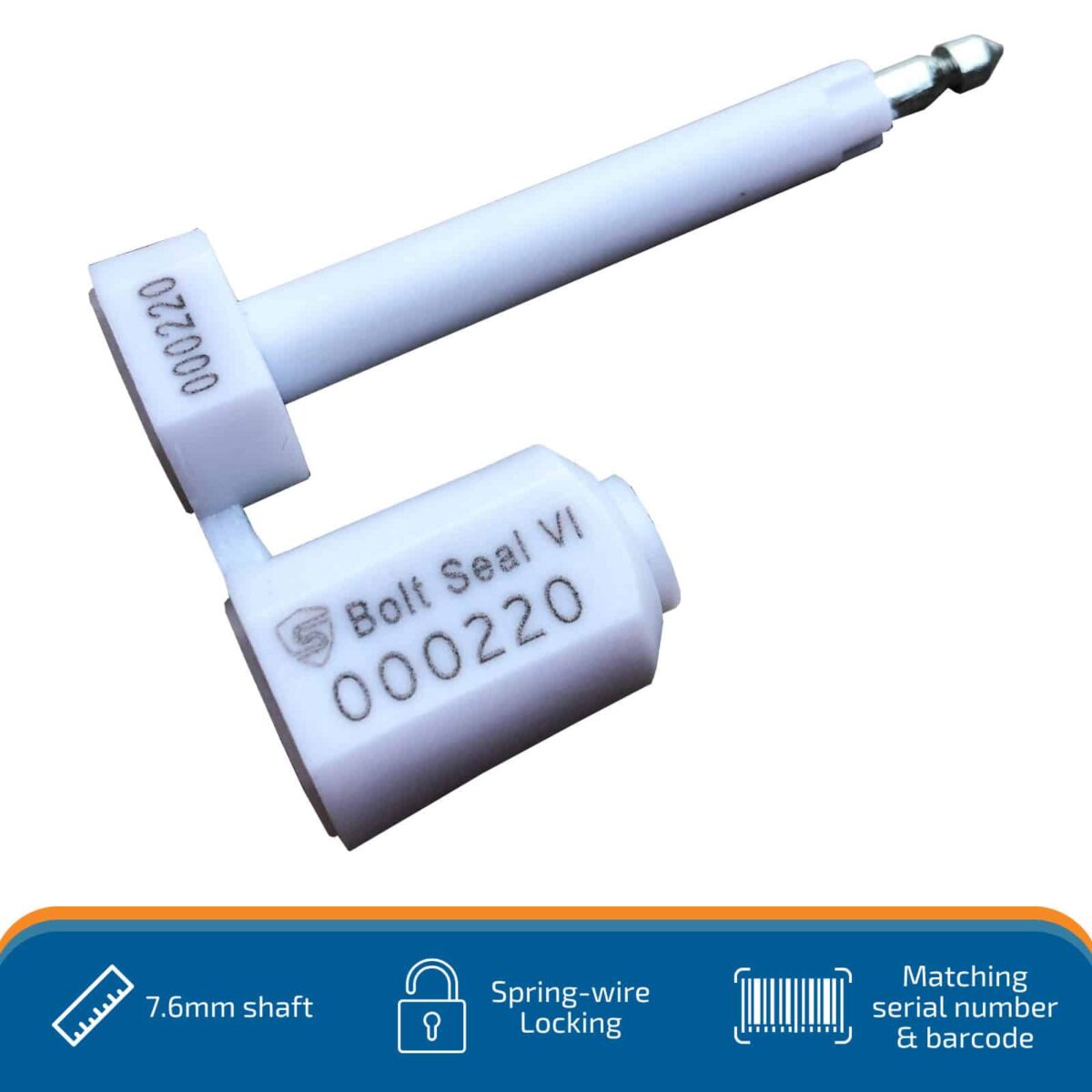

- Narrow 7.6mm shaft designed to fit narrow spaces
- Spring Wire locking mechanism
- Self-locking mechanism ensures easy locking without any need for tools
- Plastic moulded anti-spin feature on shaft and bolt
- Matching serial number on bolt and shaft
- Removal only with bolt cutter
- Suitable for domestic transportation
- Sold in cartons of 500 pieces or single packets of 50 pieces
- Available in white only
Contact us to customise your seal with logos, text, and serial numbers.
For bulk orders (+5 cartons) please contact our offices for pricing.
Description
Mini Container Bolt Seal VI
Container Bolt Seals are designed to provide maximum barrier resistance and are most effective to prevent intrusion. They are constructed of hardened steel and require a bolt cutter to remove. The Mini Container Bolt is predominantly used for domestic applications.

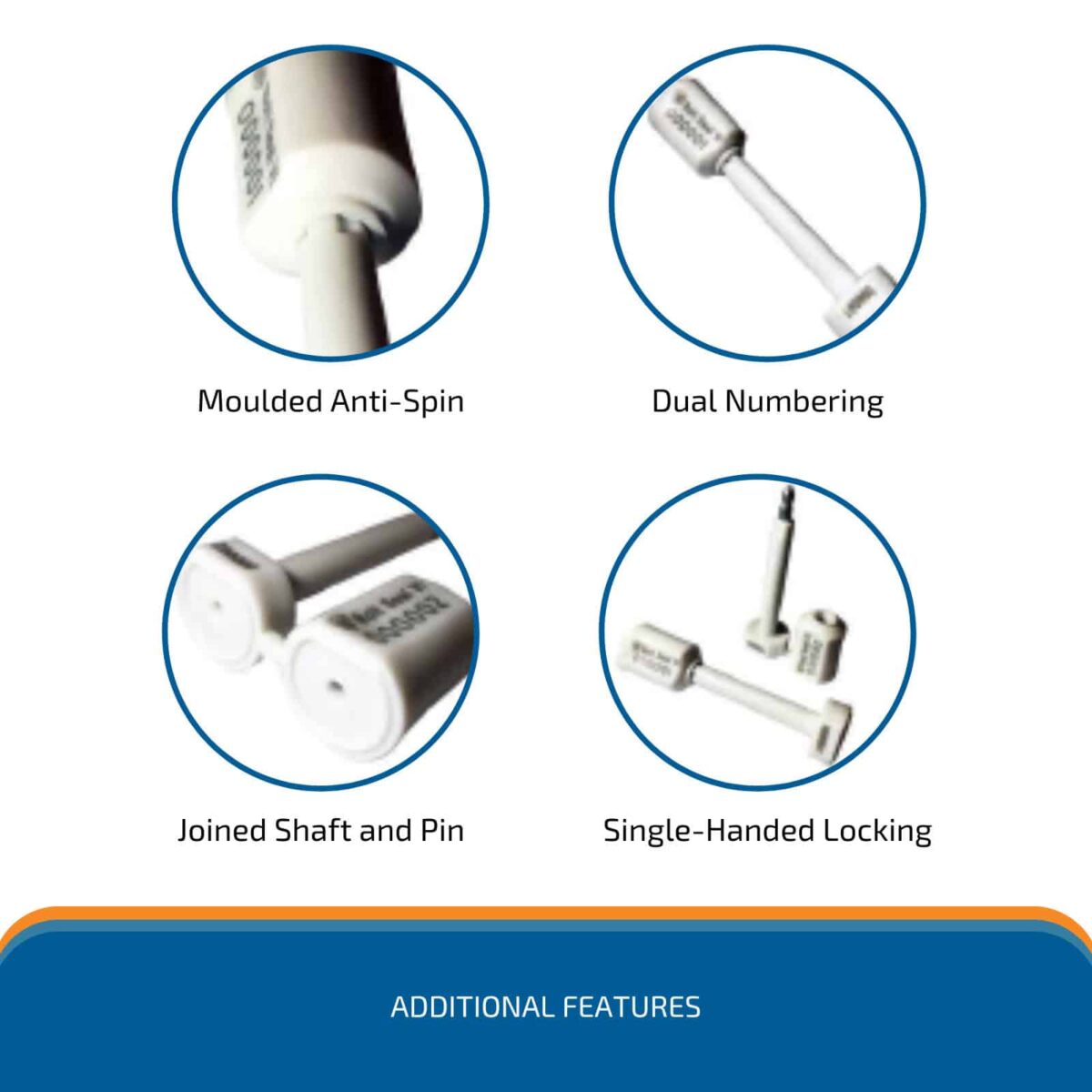

All our Container Bolt Seals feature:
- Carbon Steel Pin – Hardened Carbon Steel Pin provides extra barrier resistance.
- Plastic Coated – ABS plastic coating to protect the pin against the elements.
- Dual Numbering – Identical serial numbers on both the Nut and Pin prevents tampering by switching out the pin.
- Anti-Spin Feature – Prevents tampering by spinning the pin at high speed which will result in pin releasing from the locking chamber.
- Anti-Cut Feature – Prevents tampering by cutting the pin close to the locking chamber and hiding the cut in the locking chamber.
- Unique Numbering – Unique sequential serial number with extra area for printing of logos or text.
- Easy Application – The Bolt can easily be applied by hand.
- Removal by Cutting Tool only
- Bolt and Nut joined for easy handling.

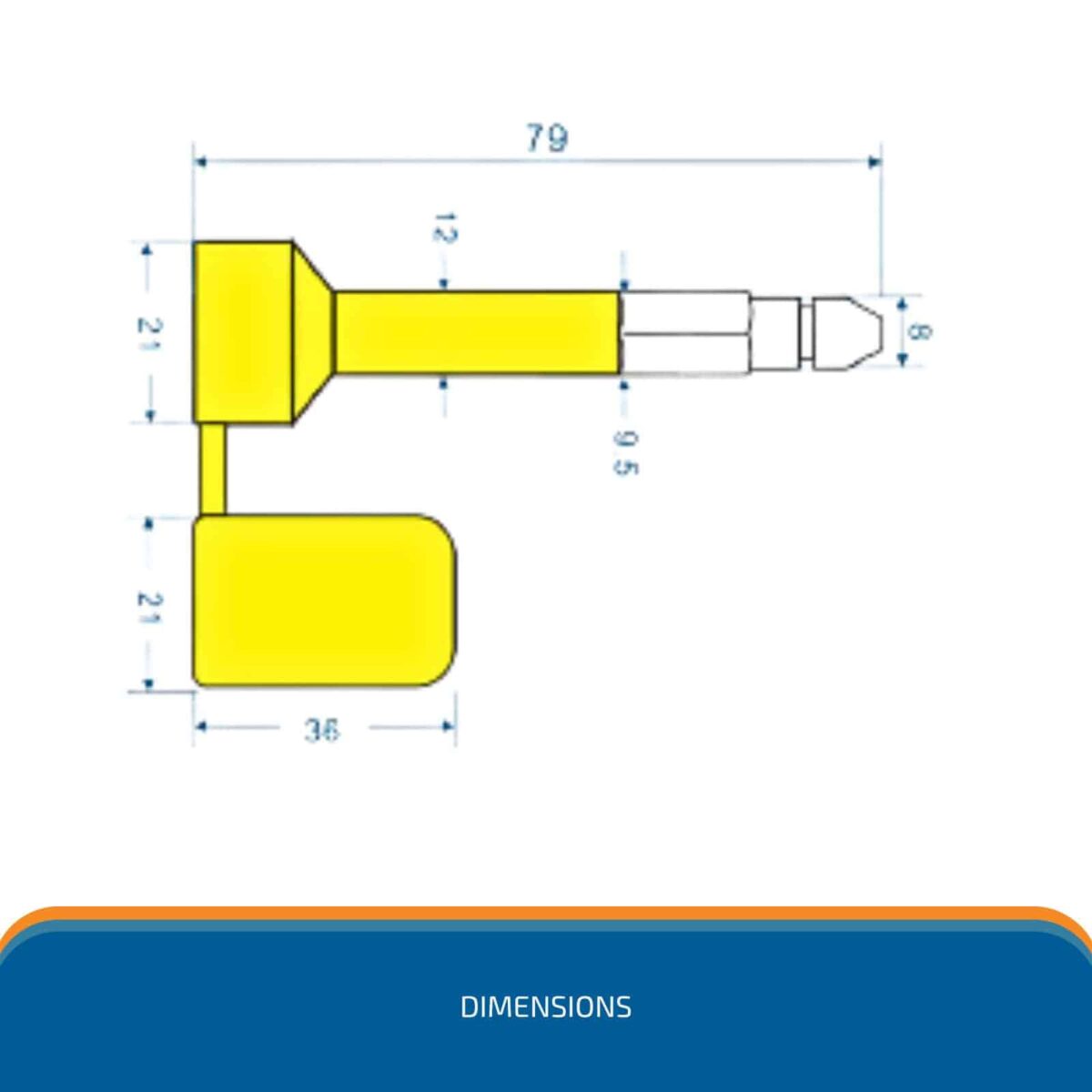

Technical Specifications
- Body: Hi Impact ABS
- Shaft and Bolt: Carbon Steel
- Locking: Spring Wire
- Tensile Strength: 240kgs
- Shear Strength: 300kgs
- Total Length: 79mm
- Locking Length: 45mm
- Bolt: 5mm
- Nut: 15mm
Industries
- Transportation
- Government
- Retail
- Pharmaceutical & Healthcare
- Food Services
- Manufacturing & Packaging
- Air and Sea Freight Logistics
- Mining
Typical Applications
- Shipping Containers
- Air Freight Containers
- Bulk Tankers and Trailers
- Rail Freight Containers
Customisation Options
Customising the artwork printed on your bolts is not just a branding exercise. By having your own artwork, you are reducing the possibility of tampering or pilferage.
- Customer name and corporate logo
• Customised text and artwork
• Up to 6 digits sequential numbering
Which bolt would be suitable for me?
High Security Bolt – This bolt is ISO17712:2013 certified as a High Security seal and is also C-TPAT certified. It is suitable for export containers and meets the requirements for exports to the United States and Europe.
Economical Bolt – Equally as strong as the high security bolt, however without the ISO17712:2013 certification. These are ideal for use with domestic freight on higher value items.
Mini Bolt – When a high tensile strength isn’t required the mini bolt is used extensively on trucks. Note, that Pacific National does not accept the use of this bolt.
Additional information
| Weight | 11.5 kg |
|---|---|
| Dimensions | 42 × 32 × 21 cm |
| Colour | White |
| Tensile Strength | 240.0 kgs |
| Body | Hi Impact ABS |
| Shaft and Bolt | Carbon Steel |
| Locking | Spring Wire |
| Total Length / Locking Length | 79mm / 45mm |
| Size |
Can the Mini Container Bolt Seal VI be customised?
Yes. The Mini Container Bolt Seal VI can be customised with sequential numbering, logos, or text to enhance security and brand visibility.
What is the Mini Container Bolt Seal VI used for?
The Mini Container Bolt Seal VI is designed for domestic transportation and general cargo security, such as trucks, tankers, trailers, rail freight, and air freight containers. It provides a tamper-evident seal where high tensile strength is not required.
Is the Mini Container Bolt Seal VI ISO 17712:2013 compliant?
No. The Mini Container Bolt Seal VI is not ISO 17712:2013 compliant and is not suitable for international container exports that require certified high-security seals. For exports to the US or Europe, the High Security Bolt Seal is required.
What material is the Mini Container Bolt Seal VI made from?
The Mini Container Bolt Seal VI is manufactured with a hardened carbon steel pin encased in ABS plastic for weather resistance. It features a spring wire locking mechanism for added strength.
What are the technical specifications of the Mini Container Bolt Seal VI?
The Mini Container Bolt Seal VI has a total length of 79 mm, locking length of 45 mm, bolt diameter of 5 mm, nut diameter of 15 mm, tensile strength of 240 kg, and shear strength of 300 kg.
How is tampering prevented with the Mini Container Bolt Seal VI?
The Mini Container Bolt Seal VI includes dual numbering (on both pin and nut), an anti-spin feature to prevent manipulation, and an anti-cut feature that stops attempts to cut the pin close to the locking chamber.
How do I apply and remove the Mini Container Bolt Seal VI?
The Mini Container Bolt Seal VI can be applied easily by hand without tools. Removal requires a bolt cutter, ensuring only authorised access.
